GB PVC FLEXIBLE CORD

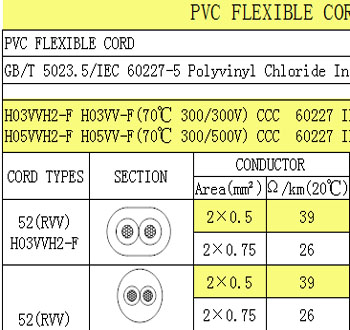

PVC FLEXIBLE CORD
PVC FLEXIBLE CORD
GB/T 5023.5/IEC 60227-5 Polyvinyl Chloride Insulated Cables of Rated

H03VVH2-F H03VV-F(70℃ 300/300V) CCC 60227 IEC 52(RVV) H05VVH2-F H05VV-F(70℃ 300/500V) CCC 60227 IEC 53(RVV)

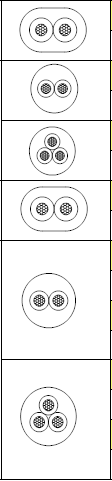

CORD TYPES	SECTION	CONDUCTOR		Overall diameter	Rating(A)
CORD TYPES	SECTION	Area(mm²)	Ω/km(20℃)	Overall diameter	Rating(A)
52(RVV) H03VVH2-F		2×0.5	39	3.3×5.4	6
52(RVV) H03VVH2-F		2×0.75	26	3.5×5.7	10
52(RVV) H03VV-F		2×0.5	39	5.2	6
		2×0.75	26	5.5	10
		3×0.5	39	5.5	6
		3×0.75	26	6.0	10
53(RVV) H05VVH2-F		2×0.75	26	4.0×6.4	10
53(RVV) H05VVH2-F		2×1.0	19.5	4.1×6.6	12
53(RVV) H05VV-F		2×0.75	26	6.4	10
		2×1.0	19.5	6.6	12
		2×1.5	13.3	7.6	16
		2×2.5	7.98	9.3	20
		3×0.75	26	6.8	10
		3×1.0	19.5	7.0	12
		3×1.5	13.3	8.5	16
		3×2.5	7.98	10.0	20
