Counters

  • Mechanical Counters
  • Mechanical Counters
  • Mechanical Counters
  • Mechanical Counters
Mechanical Counters Mechanical Counters Mechanical Counters Mechanical Counters

Mechanical Counters

  • Rohs & CE Compliance
  • 0-99999 (4 ~ 5 digits)
  • Applications: Power Industry
  • Product description: The mechanical counters require no power since they are incremented by the shaft movement alone.Typical applications include counting cycles of a machine, indicating physical positioning or measuring
  • INQUIRY

DESCRIPTION

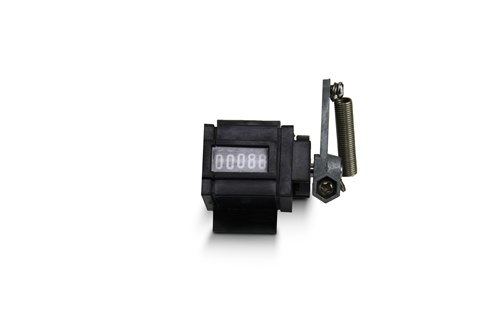

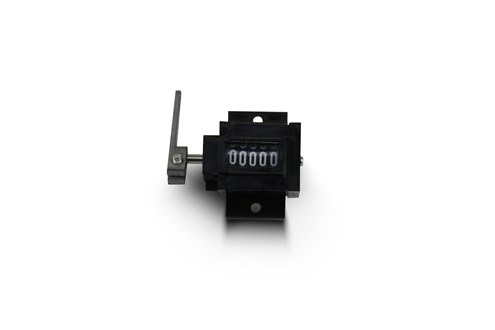

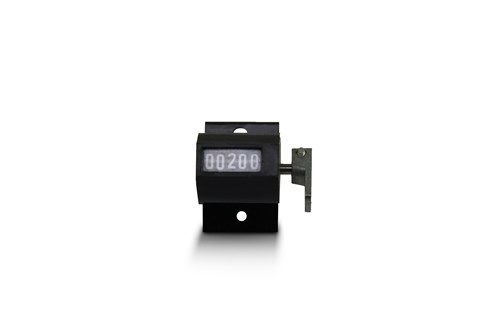

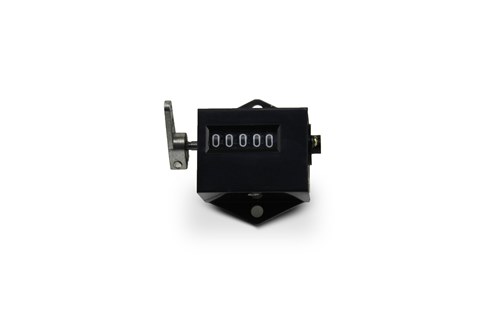

The mechanical counters require no power since they are incremented by the shaft movement alone. They are dedicated to high and low voltage power industry, high-voltage switches, transformers, segmenters and other product applications. Typical applications include counting cycles of a machine, indicating physical positioning or measuring length. There are many counters available with the difference configurations including the left or right outstretched shafts, square, semi-circular, up-mounted, down-mounted, clockwise, counterclockwise rotation, pull running way.


Counting: built-in toggle, 45° for a movement to the shaft, the digital wheel to 36° (10 counts per each 360° ratation as a increment count, pull one number at a time, the counting is an accumulation mode.


We are pleased to cutomize any diesel counting products. Contact us and you will find a dedicated team to partner with you from design to final delivery!!
