Plastic & Acrylic Flow Meters

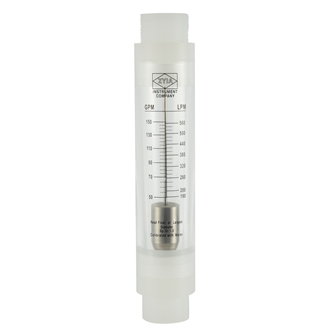

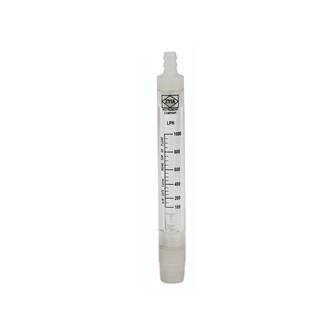

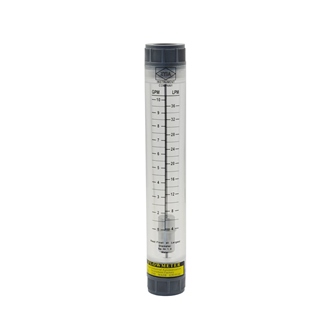

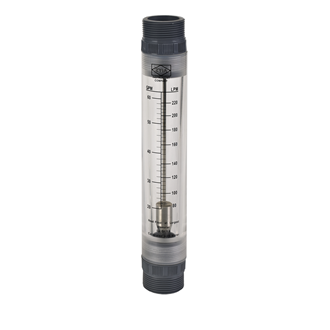

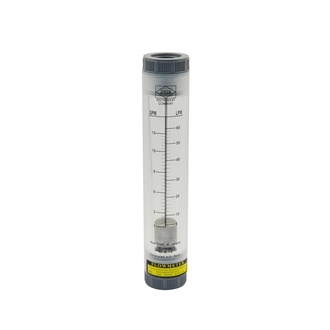

Acrylic Tube Flow Meters (Pipe Type)

Installation: Pipe Type
Wide Range Products Available
Accuracy: +/- 4%
Medical / Engineering / General-Purpose
Product description: The inlet and outlet are located on the top and bottom of flow meter body which are compatible with the tube installation. Contact us for more details!
INQUIRY

LZM Series Pipe Installation Arylic Flowmeter/Glass Flowmeter

Mode# LZM - G Series

Model	Range			Screw Thread	Accuracy
	GPM(Liquid)	LPM(Liquid)	Nm3/h(Gas)
LZM-10G		2.5-25LPH		(M）1/2”BSP (M）1/2”NPT	±4%
		5-45LPH
		6-60LPH
		10-100LPH
		16-160LPH
LZM-15GD		4-40LPH 10-100LPH	0.3-3	(F）1/2”BSP
LZM-15G LZM-15GF	0.1-1	0.5-4	0.8-8 1-10 1.6-16 2.5-25 4-40
	0.2-2	1-7
	0.5-5	1.8-18
	1.5-9	400-2000LPH
LZM-20G LZM-20GF	1-10	4-36	6-60	(F）3/4”BSP
		100-1000LPH
LZM-25G LZM-25GF	1-10	4-36	6-60 10-100 15-140 16-160 25-250 35-350 80-400	(F）1”BSP
	1-15	5-60
	2-20	10-70
	5-30	20-110
	5-40	20-150
	5-45	20-170
	20-60	80-220

LZM-40G LZM-40GF	1-10	4-36	6-60 10-100 15-140 16-160 25-250 35-350 80-400	(M）1 1/2”BSP	±4%
	1-15	5-60
	2-20	10-70
	5-30	20-110
	5-40	20-150
	5-45	20-170
	20-60	80-220
LZM-40GB	4-40	15-150		(F）1 1/2”BSP
	6-60	20-240
	8-80	50-300
	10-100	50-350
LZM-50G LZM-40GB	20-80	80-300	100-500 120-600 300-850 400-1200 500-1400	(F/M）2”BSP
	20-100	80-360
	40-120	150-450
	50-150	190-560
	60-200	220-750
LZM-75GB	120-300	450-1100		(F）3”BSP

Model	Size

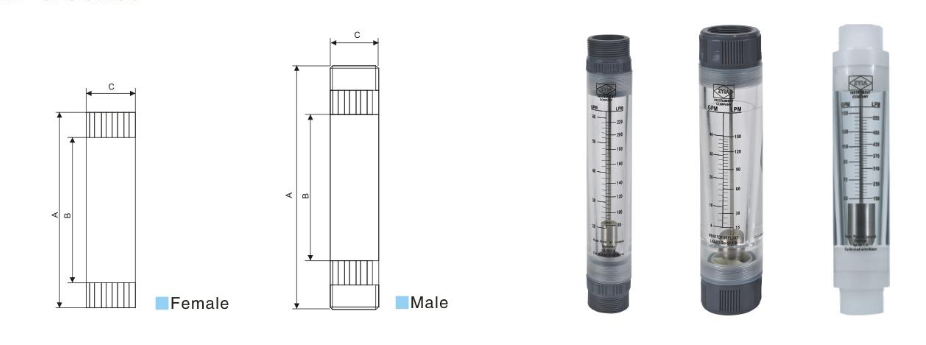

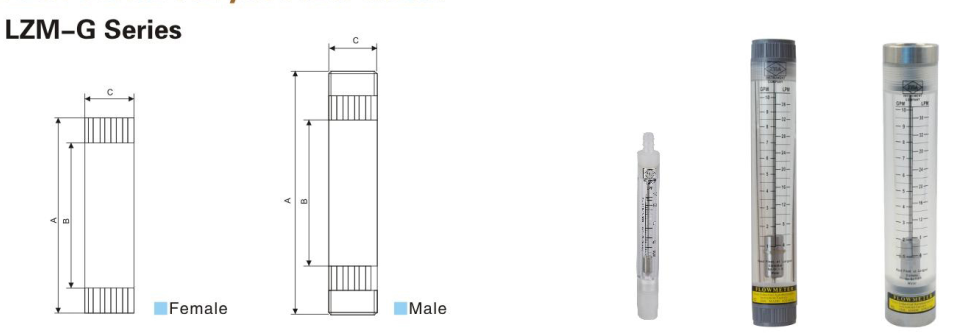

Model	A	B	C
LZM-10G	187	130	22
LZM-15GD	180	150	32
LZM-15G LZM-15GF	210	180	32
LZM-20G LZM-20GF	278	236	45
LZM-25G LZM-25GF	265	235	51

LZM-40G LZM-40GF	306	235	51
LZM-40GB	302	230	68
LZM-50G	380(M)	270	75
LZM-40GB	340(F)	270	75
LZM-75GB	392	298	110×110

The Material of the LZM-G series Flow Meter：

Fitting

Float

O-ring

1. ABS

2. PP

3. PVC √

4. Brass

5. Brass chromeplate

6. SS

1. SS √

2. Agata ball

3. PTFE

1. Silicon rubber √

2. Fluorin rubber

3. Butyl

Note: Mark with √, the material of the Flow Meter is the General Configuration

Note: For buyer s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, LZM-G Circular tube type flowmeter LZM-GF Quadrate tube type flowmeter
