Field Wireable I/O Connectors

Fieldbus Connectors

250V AC/DC ; Max 4A
IP65 ; -20 ~ +85°C ; CE/Rohs Compliance
Max Wire Gauge: 0.75mm
Max Adaptable Cable Dia: 8.0mm
Product description: The M12 Fieldbus I/O Connector series products are widely used in Mechanical, Energy, Power, Auto and 3C industry. In accordance with all different environments, the M12 harness can also be ordered wi
INQUIRY

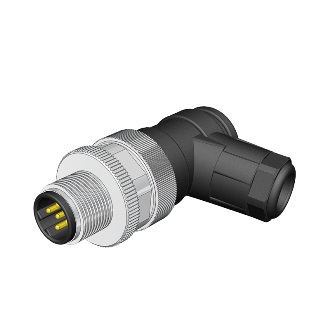

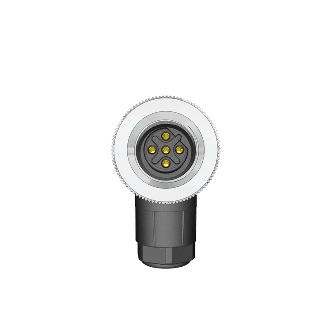

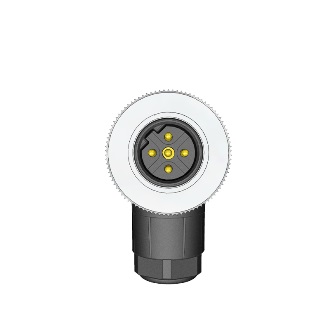

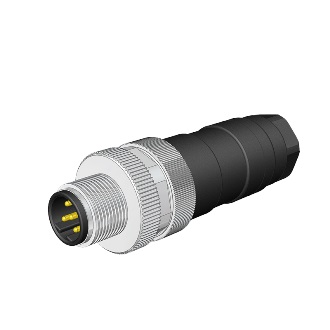

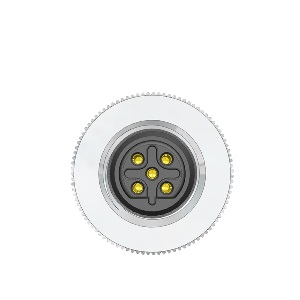

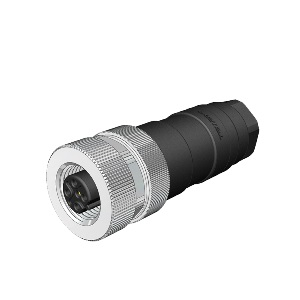

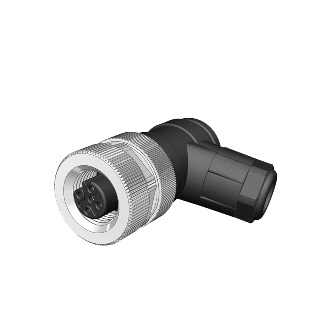

M12 Series Male/Female 5 Pin Fieldbus Connectors with Straight Mode and Right Angle Mode configurations are available.

---------------------------------------------------------------------------------------------------------

Connector Coding System:

M12- BX 0X X

1 2 3

1: M(Male Connector) / F(Female Connector)

2: 05(5Pin)

3: T(Straight Type) / S (Angled Type)

---------------------------------------------------------------------------------------------------------

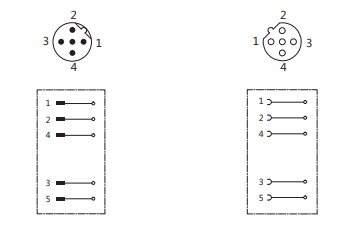

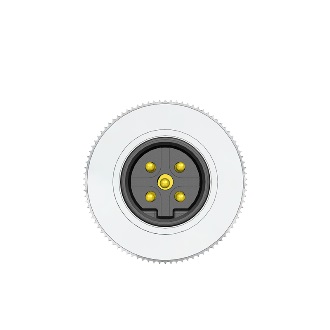

5 Pin Fieldbus Connector Diagrams:

Model#: M12-BM05S/M12-BF05S/M12-BM05T/M12-BF05T

---------------------------------------------------------------------------------------------------------------------------------

Technical Notes:
