Field Wireable I/O Connectors

M12 Series Field Wireable I/O Connectors

60V、125V、250V AC/DC ; Max 4A
IP65 ; -20 ~ +85°C ; CE/Rohs Compliance
Max Wire Gauge: 0.5~0.75mm
Product description: The I/O Connector series products are widely used in Mechanical, Energy, Power, Auto and 3C industry. In accordance with all different environments, the M12 harness can also be ordered with the custom
INQUIRY

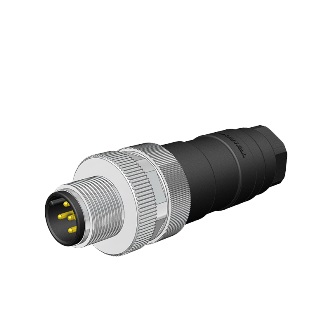

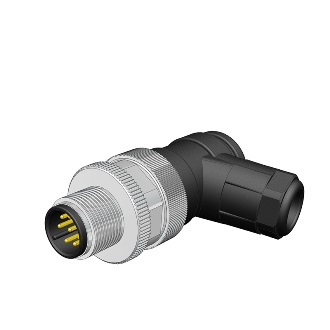

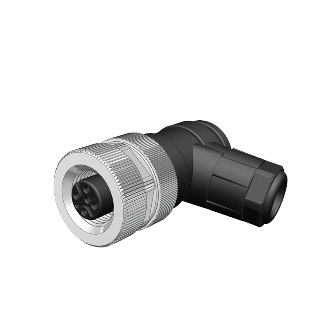

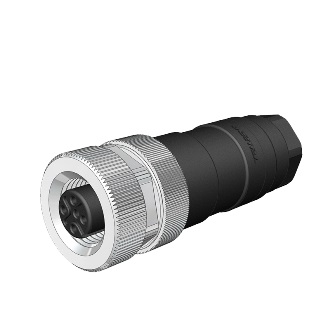

M12 Series Male/Female Field Wireable Connectors with 3 Pin, 4 Pin, 5 Pin and 8 Pin configurations are available.

---------------------------------------------------------------------------------------------------------

Connector Coding System:

M12- X 0X X

1 2 3

1: M(Male Connector) / F(Female Connector)

2: 03(3Pin) / 04(4Pin) / 05(5Pin) / 08(8Pin)

3: T(Straight Type) / S (Angled type)

---------------------------------------------------------------------------------------------------------

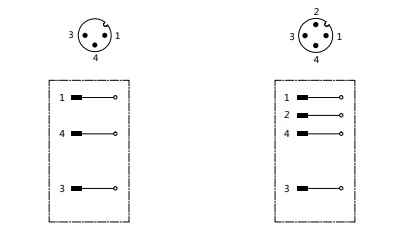

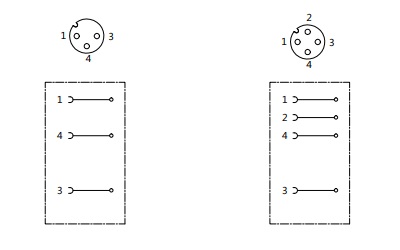

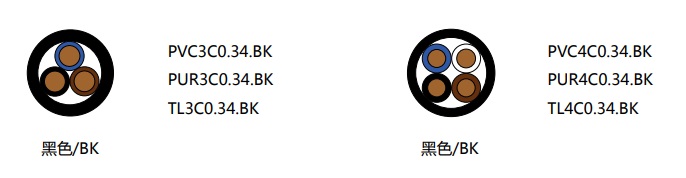

3 Pin/4 Pin Connector Section View and Diagrams:

Model#: M12-M03S/M12-F03S/M12-M03T/M12-F03T

M12-M04S/M12-F04S/M12-M04T/M12-F04T

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

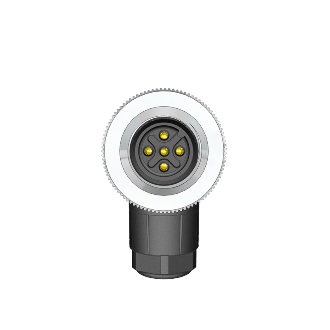

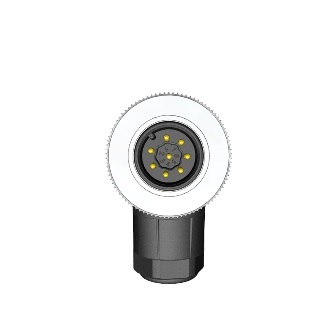

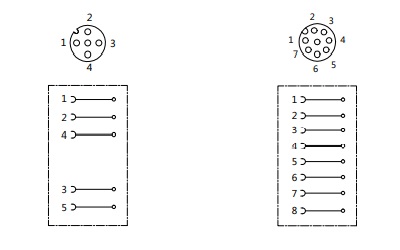

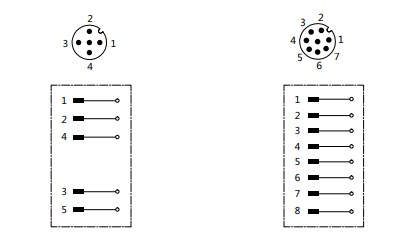

5 Pin/8 Pin Connector Section View and Diagrams:

Model#: M12-M05S/M12-F05S/M12-M05T/M12-F05T

M12-M08S/M12-F08S/M12-M08T/M12-F08T

---------------------------------------------------------------------------------------------------------------------------------

Technical Notes:

General Parameters		Electrical Parameters		Material Parameters
Termination	Bolted	EMV compliance	Not Shieldable	Forming method	Field Installation
Number of Pins	3 Pin/4 Pin/5 Pin/8 Pin	Rated voltage	250V/125V/60V	Connector locking system	Bolted M12X1
Tightening torque	0.6 Nm	Contact resistance	≤3mΩ	O-Ring	NBR
Mechanical operation	> 100 mating cycles	Rated impulse voltage	800V	Plastic insulator material	PA6 (Black)
Degree of protection	IP65/IP67	Rated current (40°C)	4A	Material of contact	Cu+Zn(Alloy)
Flame retardant grade	UL94-HB	Pollution degree	3	Contact plating	Au(gold)
Implementation standard	IEC 61076-2-101	Hypot	II	Material of contact body	PA6
Operation Temperature	-20°C ~ +85°C	Isolation	II	Nut material	Brass nickel plated
